Multitronic gearbox

Make appointment

Audi's Continuously Variable Transmission (CVT) is called multitronic. The multitronic is a stepless automatic transmission which means that the gear ratio can be varied continuously. In 2014 the production of the multitronic was terminated and replaced by Audi’s newest S-tronic transmission.

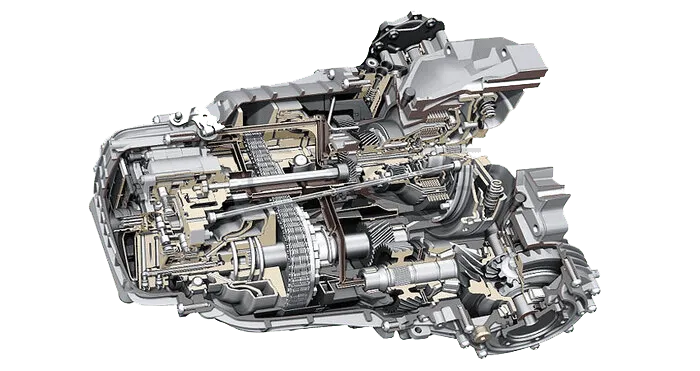

Multitronic gearbox photo
Background

Multitronic transmission

Back in 1999 Audi AG introduced the multitronic which is a continuously variable transmission (CVT) type. This CVT concept is essentially a chain drive transmission that simulates gears by controlling the gear ratio stepless.

The problem with most CVT concepts that were already available on the market was the limited torque capacity. Therefore this transmission type was only suitable for the smaller vehicle segment. Audi was the first car manufacturer that introduced a CVT gearbox for higher performance vehicles in the premium segment like the Audi A4, A5 and A6.

DSG Transmission models

There are several DSG models available on the market. Select one of the models below to read more about services and products TVS Engineering offers or specific common problems and fault codes.

Overview multitronic models

There are certain different multitronic models designed between 1999 and 2014. Below a summary and brief description of these models.

  • VL300
  • VL380
  • VL381

The first generation multitronic is available in multitronic equipped vehicles produced between 1999 and 2007. The VL300 has been developed over the years resulting in several variants.

  • Identification: 01J
  • Rated up to 310 – 330 Nm
  • Configuration: longitudinal
  • Examples: Audi A4 (B6) and A6 (C5)

In the period between 2004 and 2009 Audi vehicles were equipped with this renewed and reinforced multitronic model.

  • Identification: 0AN
  • Rated up to 380 Nm
  • Configuration: longitudinal
  • Examples: Audi A4 (B7) and A6 (C6)

The most common and latest generation multitronic transmission is produced between 2007 and 2014. Proven components have been further optimized resulting in a maximum supported input torque.

  • Identification: 0AW
  • Rated up to 400 Nm
  • Configuration: longitudinal
  • Examples: Audi A4, A5 and A6
Multitronic

Software optimizations

Through continuous variable transmission ratio adjustment it is possible to run the engine always  within the optimum operating mode. However, a compromise between performance, fuel economy and driving comfort should always be made. From factory the software is mainly focused on passing emission tests and lowering fuel consumption which results in  poor drivability, durability and causing vehicle vibrations. With TVS multitronic software these issues will be solved resulting in a more pleasant driving behavior and increased performance due to shifting strategies matching the engine characteristics.

Most multitronic transmissions have torque limiters integrated in the TCU software. In addition to only raising these torque limiters true specialism and knowledge from both engine and multitronic is needed since exceeding the mechanical limitations of the multitronic components will cause instant damage to the gearbox components. After years of experience TVS Engineering knows these limitations as no other and therefore guarantees with the use of custom TVS software the VL381 multitronic can handle up to 350hp and 450Nm.

Multitronic software is for now only available at TVS Engineering / DSG Dokter HQ in the Netherlands. Contact us for the possibilities for your vehicle.

Software optimizations

Multitronic gearbox pricing

These prices are valid for TVS Engineering/DSG Dokter in the Netherlands. Contact your local Dealer for the prices in your region.

  • Repairs and maintenance
  • Overhaul
  • Software optimizations
Repairs and maintenance pricing Warranty Exc. 21% TAX Inc. 21% TAX
In-depth diagnosis (free for repairs)
€ 123.14 € 149.00
Oil change incl. new oil filter
€ 230.58 € 279.00
Clutch replacement
€ 1,032.23 € 1,249.00
Multitronic gearbox (overhauled) replacement
€ 3,552.89 € 4,299.00
Overhaul pricing Warranty Exc. 21% TAX Inc. 21% TAX
Multitronic V30 TCU overhaul incl. installation
€ 577.69 € 699.00
Multitronic VL300 TCU overhaul incl. installation
€ 536.36 € 649.00
Multitronic VL380/381 TCU overhaul incl. installation
€ 576.03 € 697.00
Software optimizations pricing Warranty Exc. 21% TAX Inc. 21% TAX
TVS Multitronic software for stock vehicles (MY 2001 - 2009)
€ 329.75 € 399.00
TVS Multitronic software for stock vehicles (MY 2009 - 2014)
€ 412.40 € 499.00
TVS Multitronic software for tuned vehicles (MY 2001 - 2009)
€ 577.69 € 699.00
TVS Multitronic software for tuned vehicles (MY 2009 - 2014)
€ 660.33 € 799.00
